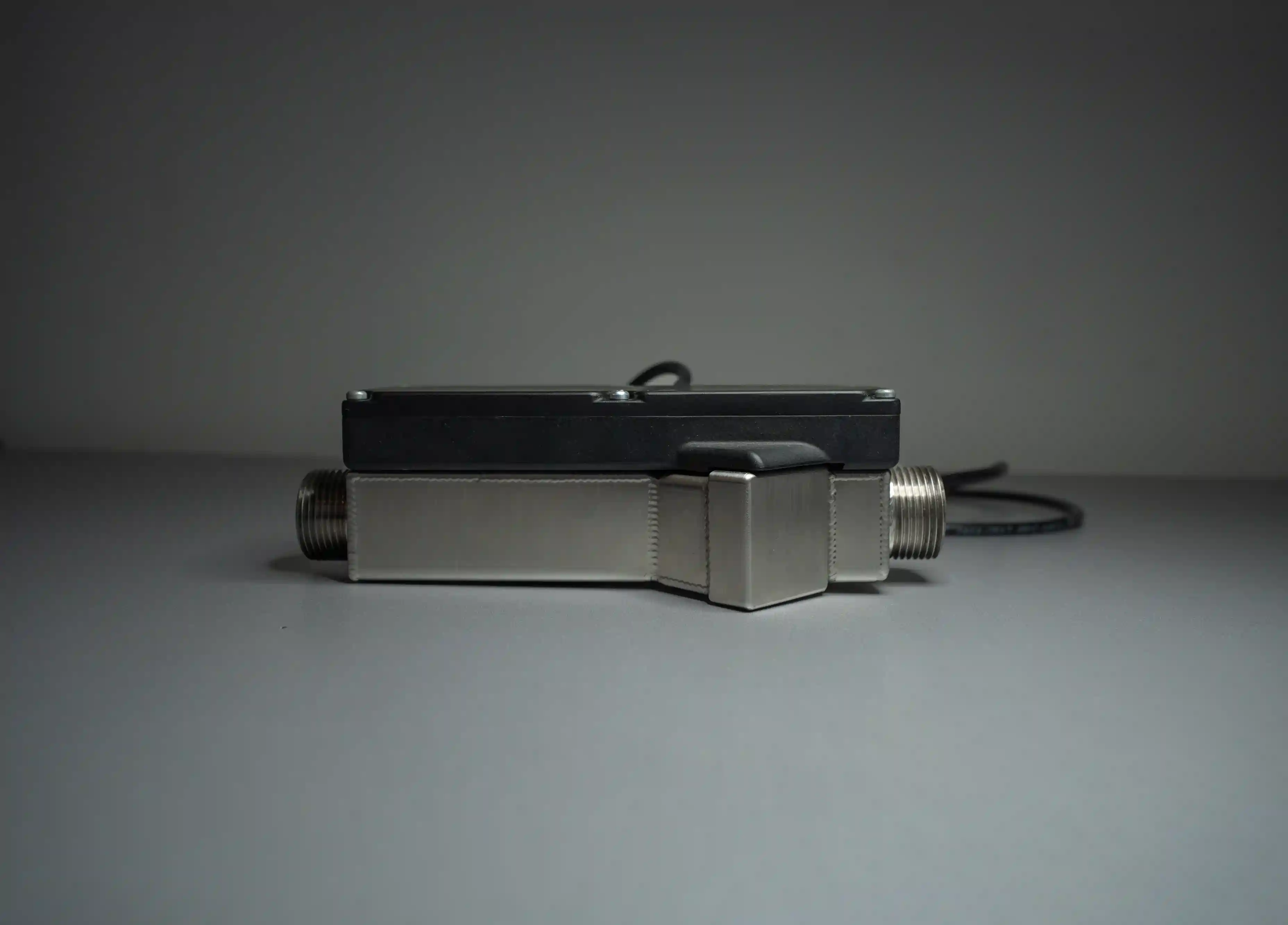

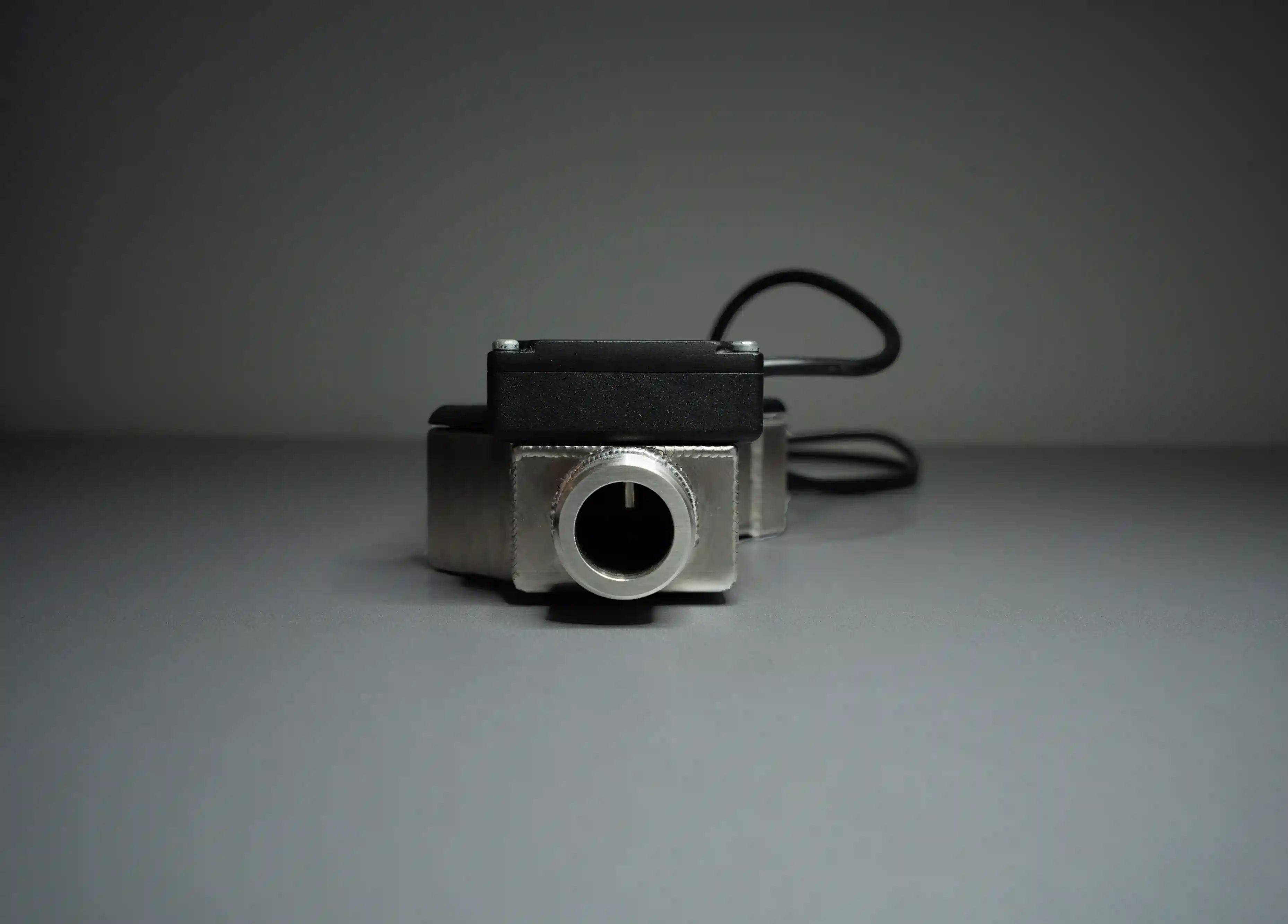

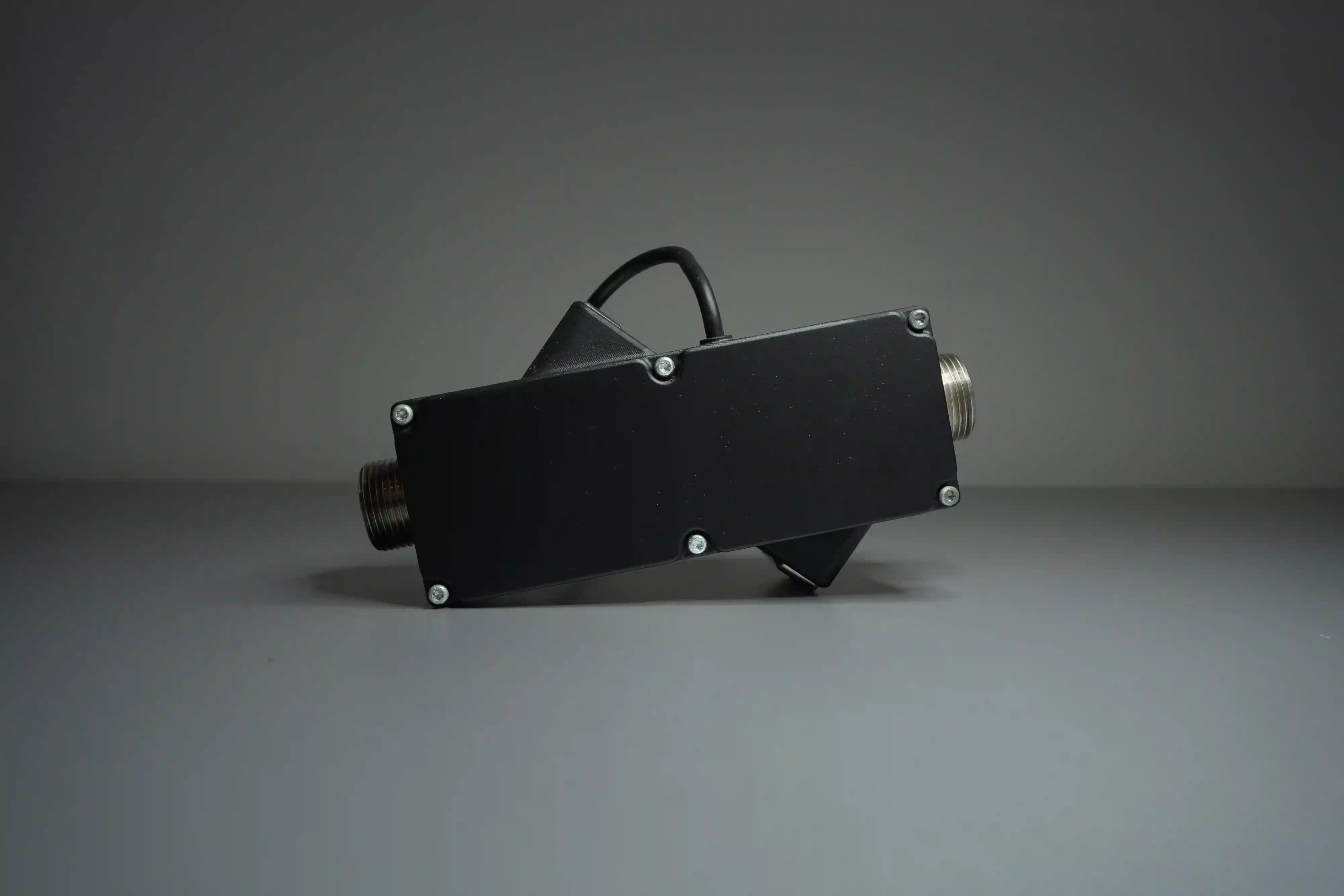

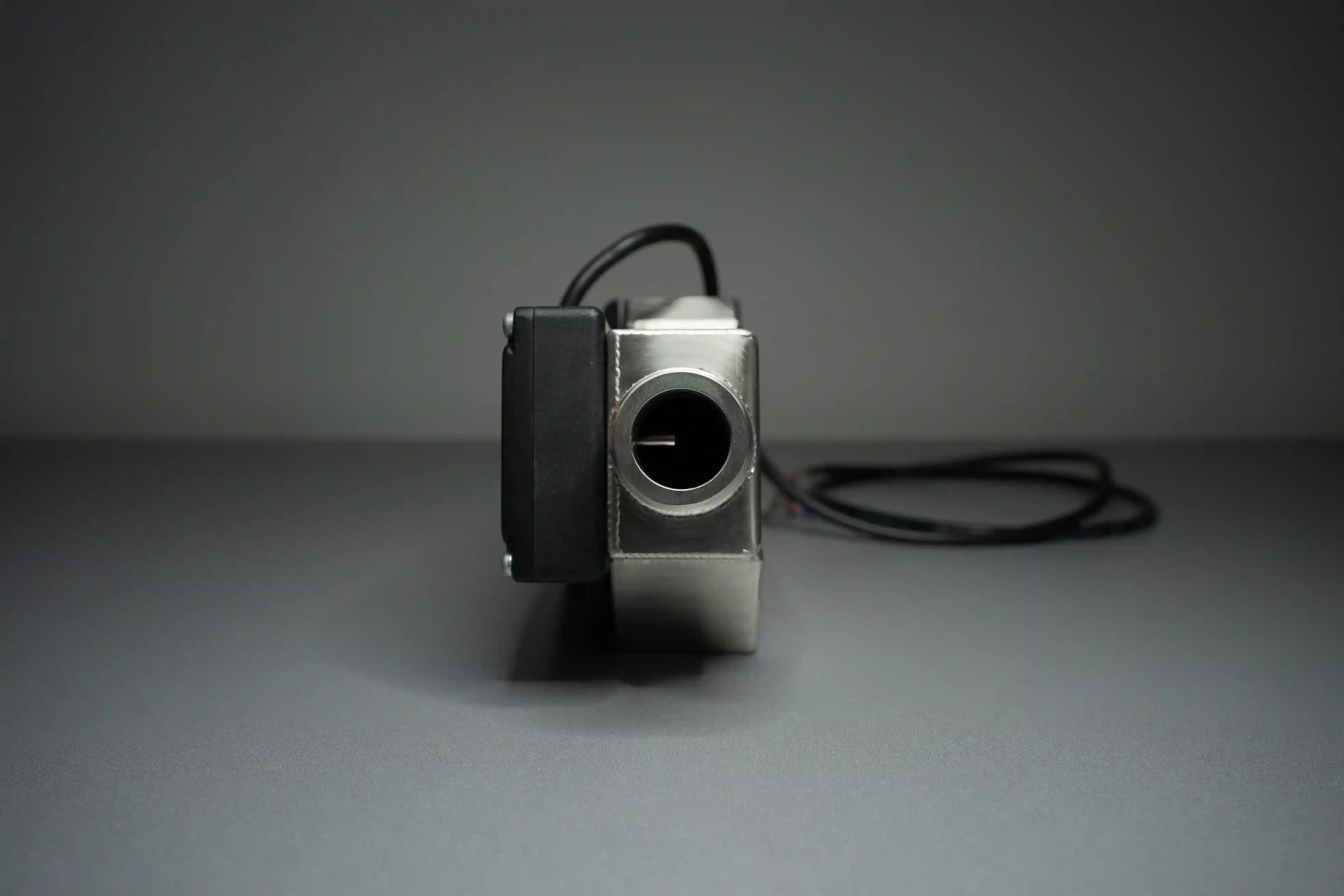

Hydrogen Flow Meter
Ultrasonic flow sensor for measurement of H2 and blends in gaseous form providing both mass flow and volume flow as well as an indication of the gas composition.
Samples available to order.
Ultrasonic flow sensor for measurement of H2 and blends in gaseous form providing both mass flow and volume flow as well as an indication of the gas composition.
| Media | Hydrogen and Mixtures (e.g. H2/N2/H2O) |
| Accuracy | ±3 % of measured value |
| Operational Pressure | 0.8 - 20 bar(a) |
| Operational Temperature | -20 - 85 °C |
| Wetted materials | Stainless Steel, Silica |
| Output | CAN-Bus, Modbus |
| Functions | • Flow measurement • Temperature measurement • Pressure measurement • Humidity measurement • Gas Composition Determination |
| DN151 | DN201 | DN321 | |
|---|---|---|---|
| Flow Range [lpm] | 10 - 1000 | 20 - 1700 | 40 - 3400 l/min |
| Length [mm] | 173 mm | 173 mm | 210 mm |
| Connection | 3/4" | 1" | 1 1/2" |
1 Not in series production yet. Prototypes available.
Ultrasonic flow sensors excel in fuel cell and electrolyzer applications, measuring de-ionized water in cooling circuits. Their full plastic body ensures compatibility.

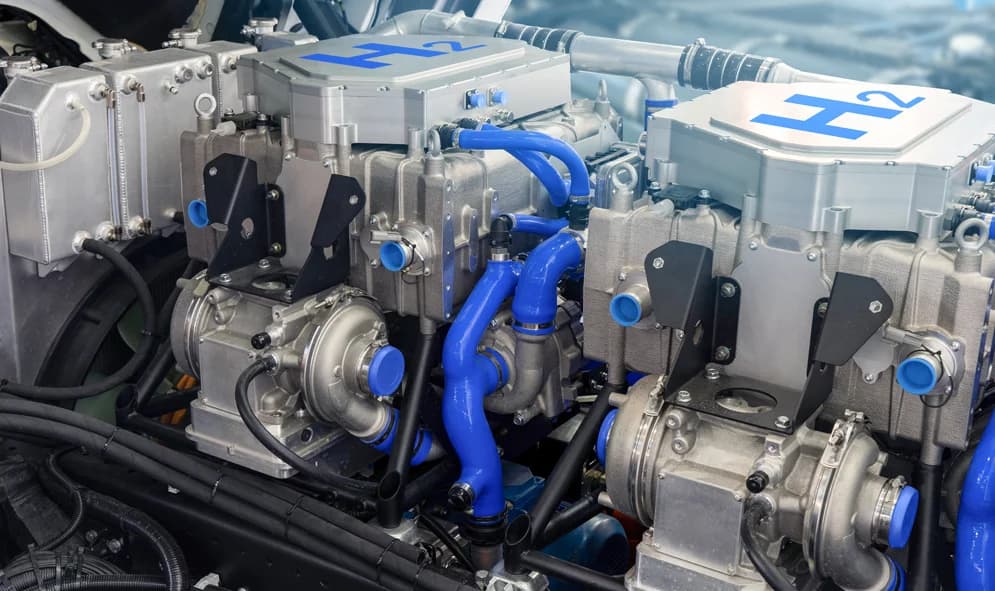

Ideal for fuel cell applications, precise gas ancomposition analysis, perfect for precise control of anodic recirculation.
