Enhancing Fluid Integrity: Ultrasonic Flow Meters for Contaminant Detection
March 4, 2025, 17 minute read
March 4, 2025, 17 minute read
In today's industrial landscape, ensuring fluid purity is paramount. Contaminants or unintended mixtures can lead to equipment malfunctions, safety hazards, and compromised product quality. Ultrasonic flow meters, traditionally used for measuring flow rates, have advanced to play a pivotal role in fluid analysis and contamination detection.
Fluid Analysis and Contamination Detection
Ultrasonic flow meters operate by transmitting ultrasonic waves through a fluid and measuring the time it takes for these waves to travel. Variations in the fluid's composition, such as the presence of contaminants, can alter the speed of sound, enabling the detection of impurities. This non-invasive method allows for real-time monitoring without disrupting the process flow.
Detection of Oil in Water
In industries where water purity is crucial, the presence of oil can be detrimental. Ultrasonic Flow Meters can detect oil contamination by observing changes in the acoustic properties of water. This capability is essential for maintaining operational efficiency and meeting environmental regulations.
Detection of Glycol in Water
Glycol contamination in water systems, especially in HVAC applications, can lead to reduced efficiency and potential equipment damage. Ultrasonic Sensors can identify such contamination by detecting changes in the fluid's density and acoustic impedance, ensuring timely maintenance and system integrity.
Detection of Oil in Gasoline for 2-Stroke Engines
For 2-stroke engines, maintaining the correct oil-to-gasoline ratio is vital for optimal performance and longevity. Ultrasonic flow meters can monitor this ratio by measuring the acoustic properties of the fuel mixture, ensuring engines operate within specified parameters.
Detection of Gas Mixtures (e.g., H₂ + CH₄, H₂ + N₂)
In gas processing and distribution, the composition of gas mixtures like hydrogen with methane or nitrogen is critical. Ultrasonic flow meters can analyze these mixtures by measuring the speed of sound, which varies with different gas compositions, allowing for accurate monitoring and control.
Allengra's Ultrasonic Flow Meter Solutions

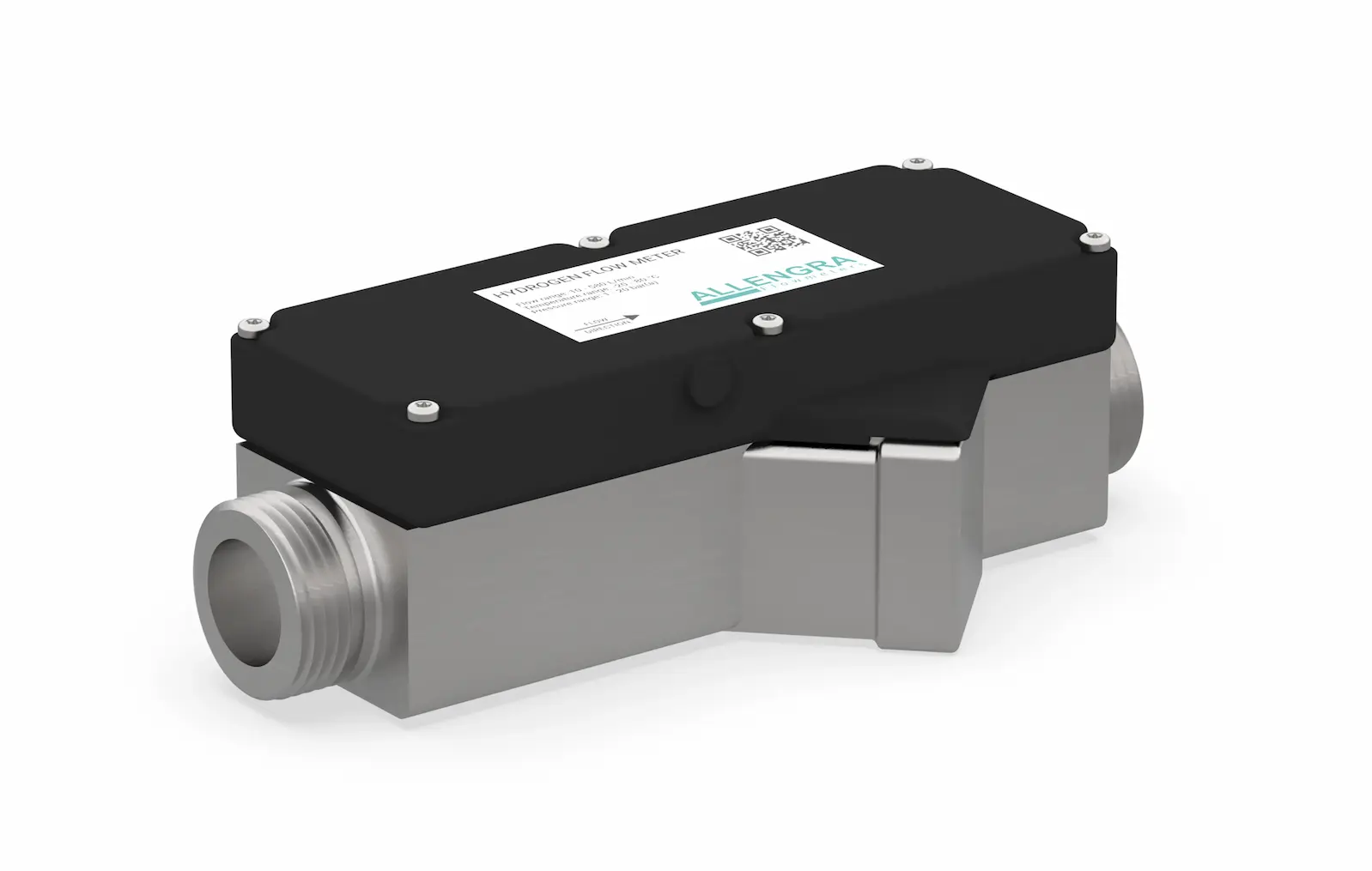

Hydrogen Flow Meter: This Ultrasonic Flow Sensor is specifically designed for measuring hydrogen and its blends in gaseous form. It provides both mass flow and volume flow measurements, along with an indication of gas composition. Features include integrated temperature, pressure, and humidity sensors, making it ideal for applications such as fuel cells and electrolyzers.
ALSONIC Brass DN15-DN50: A modular Ultrasonic Flow Sensor made of brass, suitable for measuring water, water-glycol mixtures, and deionized water. It offers integrated temperature measurement and optional features like pressure measurement and heat energy measurement. This sensor is ideal for applications in potable water systems, HVAC/R, and industrial processes.
Micro Flow Meter 2nd Gen: This compact Ultrasonic Flow Sensor is designed for measuring small volume flows, detecting gas bubbles, and measuring temperature with an extremely fast response time. It's suitable for applications such as coffee machines, beverage dispensers, medical devices, and chemical dispensers.
FAQ - Frequently Asked Questions
1. Are ultrasonic flow meters maintenance-free?
They require minimal maintenance since they have no moving parts, making them highly reliable and cost-effective over time.
2. What industries benefit from ultrasonic contamination detection?
Industries such as oil and gas, water treatment, automotive, hydrogen energy, and HVAC benefit from these sensors.
3. How do ultrasonic flow meters detect contamination in liquids?
Ultrasonic flow meters measure the speed of sound through a fluid. Contaminants cause variations in this speed, allowing the detection of impurities.
4. Are ultrasonic flow meters suitable for measuring gas mixtures?
Yes, ultrasonic flow meters can measure gas mixtures by analyzing the speed of sound within the gases, which varies based on composition. This capability allows for accurate monitoring of different gas mixtures.
5. Can ultrasonic flow meters operate in harsh environments?
Yes, most industrial-grade ultrasonic flow meters are designed to withstand extreme temperatures and pressures.
