PROTOTYPE

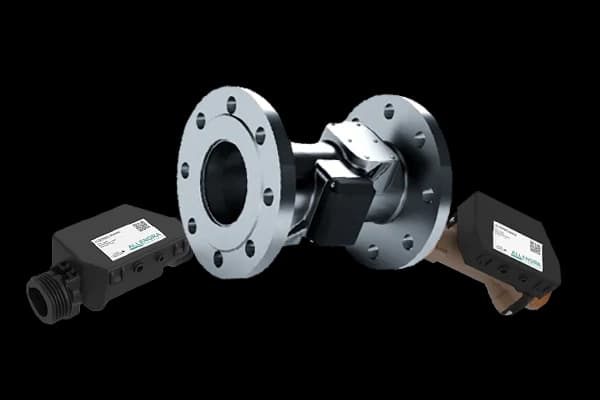

ALSONIC XL
Robust ultrasonic flow meter in DN15-DN50 sizes, achieving ±2% accuracy from 9 L/h to 60,000 L/h at pressures up to 16 bar and temperatures -20°C to 100°C. Featuring durable brass construction, integrated temperature sensing, optional pressure measurement, gas bubble detection, and glycol monitoring. Multiple communication interfaces (Pulse, 0-5V, Modbus RTU) ensure seamless integration for commercial heating, industrial process control, heat pump systems, district heating, and others.
Features
Integrated Temperature Sensor
Integrated Pressure Sensor optional
Gas Bubble Detection
Glycol Compensation
Heat Energy Measurement optional
Ultrasonic Flow Metering
Technical Data
Product specifications
Media
Water, Waste Water, Oil and many others
Accuracy
± 2 % flow accuracy of measured value
Operational Pressure
Up to 10 bar
Operational Temperature
Up to 120 °C
Wetted materials
Stainless Steel, PPS, EPDM
Connections
Flange acc. to EN 1092-1
Output
Pulse, 0-5 V, Modbus
Functions
• Flow measurement
• Temperature measurement
• Pressure measurement (optional)
• Heat metering (optional)
Variants
Select variant
DN80
Flow Range [LPM]
3.3 - 3300 LPM
Flow Range [LPH]
198 - 198000 LPH
ΔPloss@ max flow [mbar]
-
Kv [m³/h]
- m 3 m³/h
Length
210
Connection
EN 1092-1 / 01 / DN80 / PN10
DOCUMENTATION
RELATED APPLICATIONS
Water Distribution & Treatment

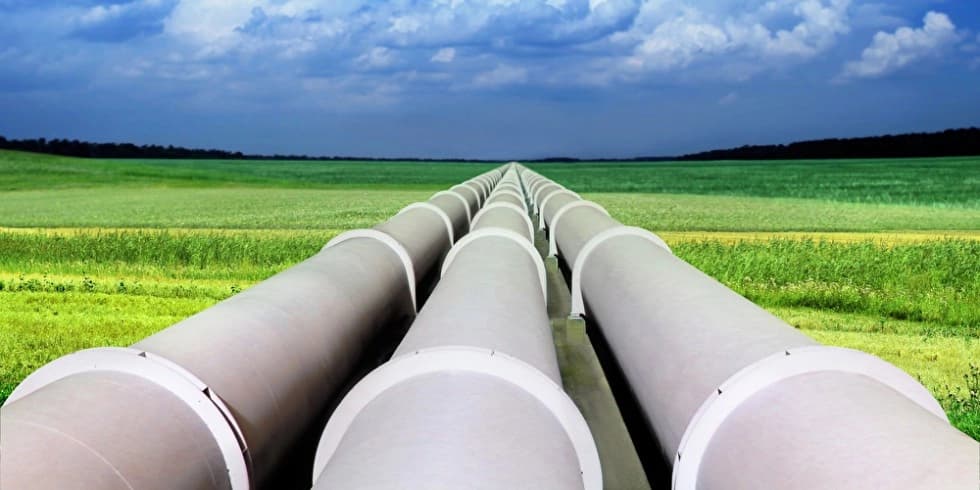

Pipelines
