Real-Time Fuel Injector Visualization and Correction Kit

High measurement frequency ultrasonic fuel flow sensor for visualization and correction of the injector's flow in combustion engines.

Real-time visualization and correction kit

Features

  • Integrated Temperature Sensor
  • High Frequency Scanning 100 kHz
  • Real-time visualization and correction
  • Ultrasonic Flow Metering

Technical Data

Flow range 5- 1500 ml/min | 0.3- 90 L/h
Media

E-Fuels, Diesel, Gasoline, and more
Accuracy ± 0.5 % of measured value
Operational Pressure

-0.1 - 500 bar (2200 bar optional)
Operational Temperature 0 - 90 °C
Wetted materials

AISI304, GF, PEEK, POM, Aluminium 7075, FFKM
Connections

Custom
Output

CAN-Bus, Modbus
Measurement frequency

100 kHz
Functions

• Flow measurement

• Temperature measurement

• Pressure measurement

Applications

Fuel Injection in Piston

Fuel Injection Scanning

Visualize fuel injection processes in real time. On the test bench or on-board. With Allengra's High Frequency Scanning technology (up to 15 kHz).
Motorsports car Formula 1

Motorsports

High-Speed Fuel Flow Measurement in the world's most prestigious racing series, delivering unmatched performance.
Synthetic E-Fuels

E-Fuels

Empowering innovation through high-performance measurements of contemporary synthetic e-fuels.
On-Board Fuel Consumption Meter

On-Board Fuel Consumption Meter

Precise on-board fuel flow meter, developed for OBFCM, WLTP and emission regulations. Suitable for use on-board of vehicles, even under harsh temperature and vibration environments.
AdBlue fuel gauge

Automotive applications

For fuel and AdBlue additives, the ultrasonic flow meter accurately tracks flow rates, optimizing consumption and vehicle performance.

News

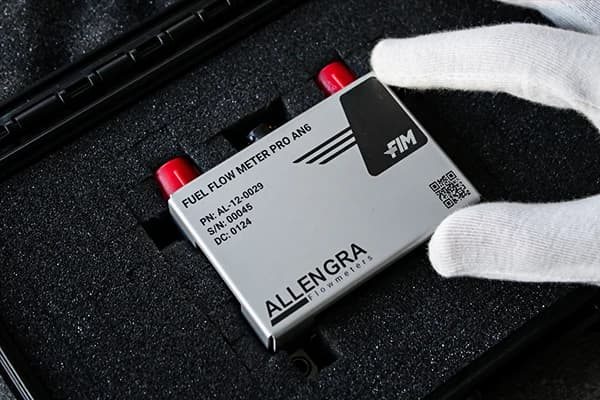

Allengra PUM Fuel Flow Meter, WSBK Fuel Flow Meter and Real-Time Fuel Injector Visualization and Correction Kit placed on columns

Introducing Allengra's Fuel Flow Meter Family

Discover Allengra's latest release of meticulously engineered Fuel Flow Meters and find out how these innovative meters can transform your operational efficiency.

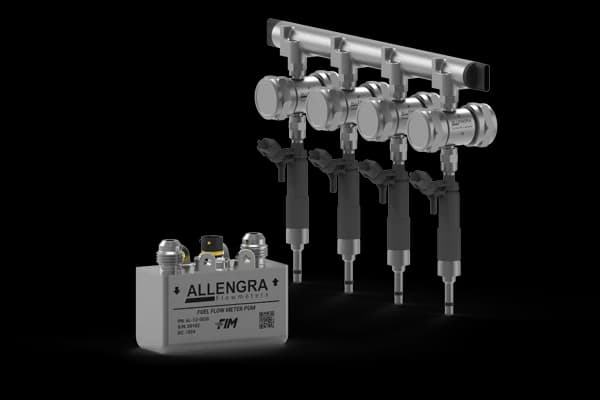

On-Board Fuel Consumption Monitoring – The New Standard
