ALSONIC High Temp PROTOTYPE

The ALSONIC High Temp Flow Meter is designed for temperatures up to 200 °C, with a stainless steel, seal-free sensor body for reliable measurement performance even under extreme temperature and pressure conditions.

View all about the ALSONIC family

Datasheet

Features

Integrated Temperature Sensor
Gas Bubble Detection
Glycol Compensation
Food Approval
Drinking Water Approval
Ultrasonic Flow Metering
Resistant to temperatures of up to 240 °C

Technical Data

Media	Water, Water-Glycol Mixtures, Oil and many others
Accuracy	± 2 % of measured value
Operational Pressure	0 – 40 bar
Operational Temperature	-40 – 200 °C
Wetted materials	Stainless Steel 316L
Connections	BSPP Male Thread for Flat Seal
Output	Pulse, 0-5 V, MODBUS, 4-20 mA, IO-Link
Functions	• Flow measurement • Temperature measurement

Variants

	DN15	DN20¹
Flow Range [lpm]	0.15 - 50	0.3 - 100
Flow Range [lph]	9 - 3000	18 - 6000
ΔP_loss@ max flow [mbar]	80	100
Kv [m³/h]	10.6	19.0
Length [mm]	110	120
Connection	G 3/4	G 1

¹ Not in series production yet. Prototypes available.

Documentation

Datasheet

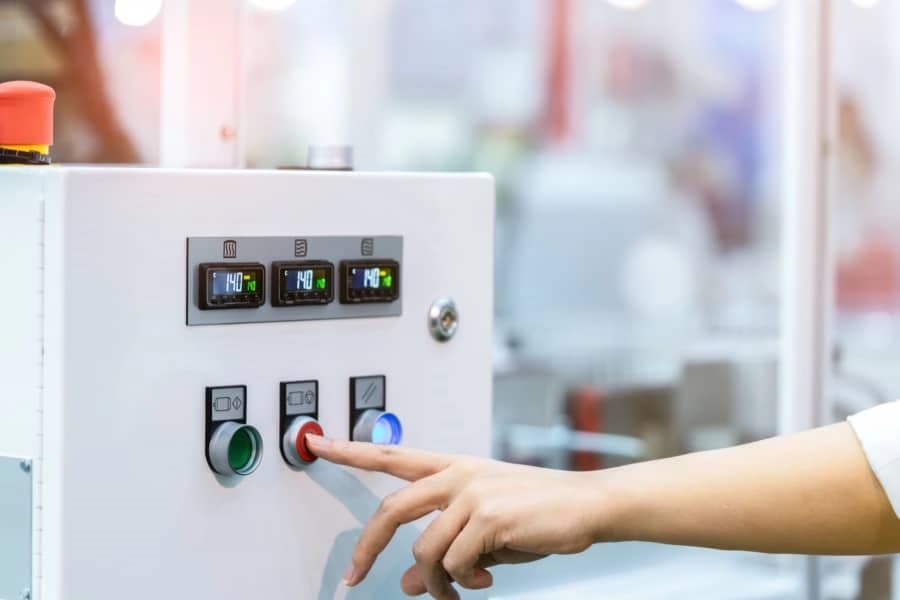

Temperature Controller

Ensuring precise temperature control in industrial tempering applications such as heating circuits of injection molding machines.

Industrial

Reliable, Robust and Compact - Ultrasonic Flow Meters are the ideal choice for industrial use.

Solar Thermal Energy

Ultrasonic flow meters in solar thermal systems: Insensitive to high temperatures and compatible with water-glycol mixtures.

Semiconductor Industry

Enabling precise flow measurement in critical semiconductor production processes through contactless ultrasonic technology with full plastic or stainless steel sensors.

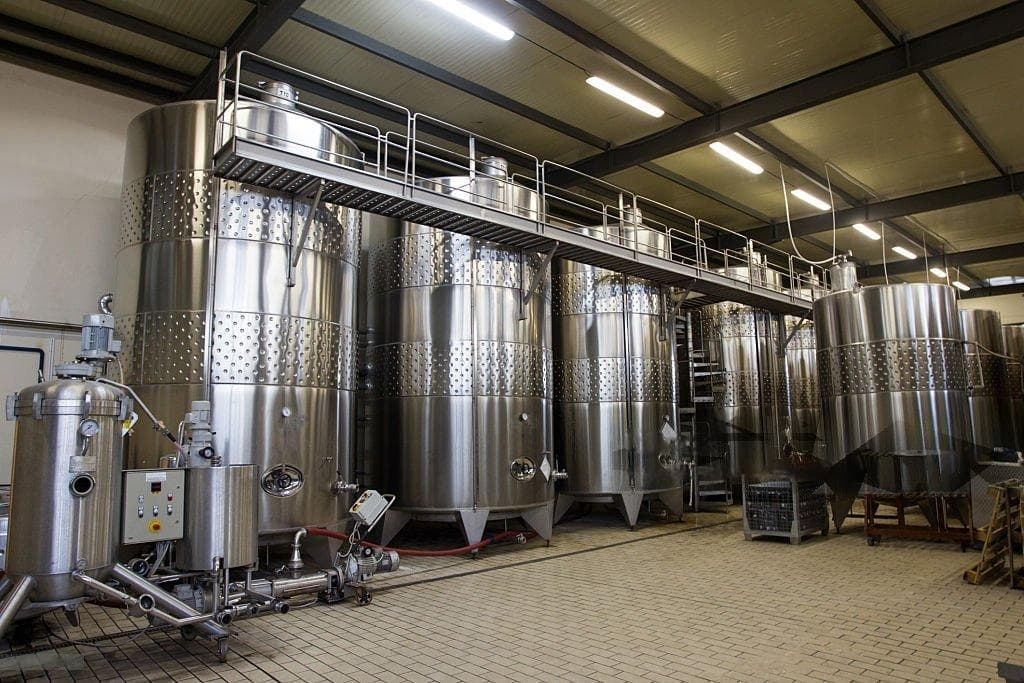

Food industry
